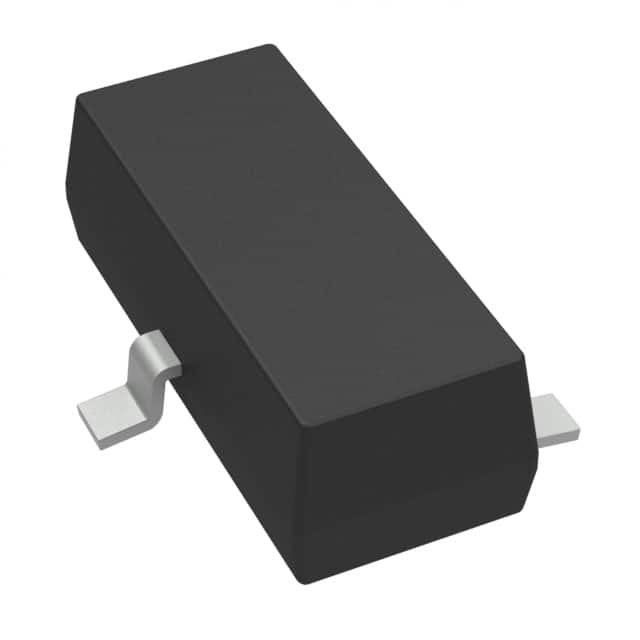

TL431BQDBZR
Datasheet
1MB
Specifications
| Digi-Key part number | 296-17623-2-ND – Tape & Reel (TR) |
| 296-17623-1-ND – Cut Tape (CT) | |
| 296-17623-6-ND – Digi-Reel® | |
| Manufacturer | Texas Instruments |
| Manufacturer Product Number | TL431BQDBZR |
| Description | IC VREF SHUNT ADJ 0.5% SOT23-3 |
| Detailed Description | Shunt Voltage Reference IC Adjustable 2.495V 36 VV ±0.5% 100 mA SOT-23-3 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | – |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | TL431 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Manufacturer Standard Lead Time | 46 Weeks |
| Output Type | Adjustable |
| Voltage – Output (Min/Fixed) | 2.495V |
| Voltage – Output (Max) | 36 V |
