Same day delivery in stock

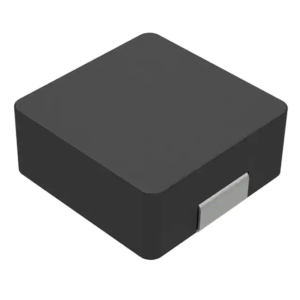

SWPA6045S6R8MT
Datasheet
4MB
Specifications
| Digi-Key Part Number | 3442-SWPA6045S6R8MTTR-ND – Tape & Reel (TR) |
| 3442-SWPA6045S6R8MTCT-ND – Cut Tape (CT) | |
| 3442-SWPA6045S6R8MTDKR-ND – Digi-Reel® | |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| Manufacturer Product Number | SWPA6045S6R8MT |
| Description | FIXED IND 10UH 1.5A 130MOHM SMD |
| Manufacturer Standard Lead Time | 16 Weeks |
| Detailed Description | 6.8 µH Shielded Drum Core, Wirewound Inductor 3 A 40mOhm Max Nonstandard |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| series | SWPA |
| Package | Tape and Reel (TR) |
| Shear Band (CT) | |
| Digi-Reel® Custom Reel | |
| Product Status | in stock |
| type | Drum Core, Wirewound |
| Material – Magnetic Core | Ferrite |
| inductance | 10 H |
| Tolerance | ±20% |
| Rated Current (Ampere) | 1.5 A |
| Current – Saturation (Isat) | 2.4A |
| shield | shield |
| DC resistance (DCR) | 130 milliohms max |
| Q value at different frequencies | – |
| Frequency – Self-resonance | 21MHz |
| grade | – |
| Operating temperature | -40°C ~ 125°C |
| Inductor Frequency – Test | 100 kHz |
| characteristic | – |
| installation type | Surface Mount Type |
| Package/Enclosure | non-standard |
| Supplier Device Packaging | – |
| size/dimension | 0.157″L x 0.157″W (4.00mm x 4.00mm) |
| Height – Mounted (Maximum) | 0.118″（3.00mm） |
