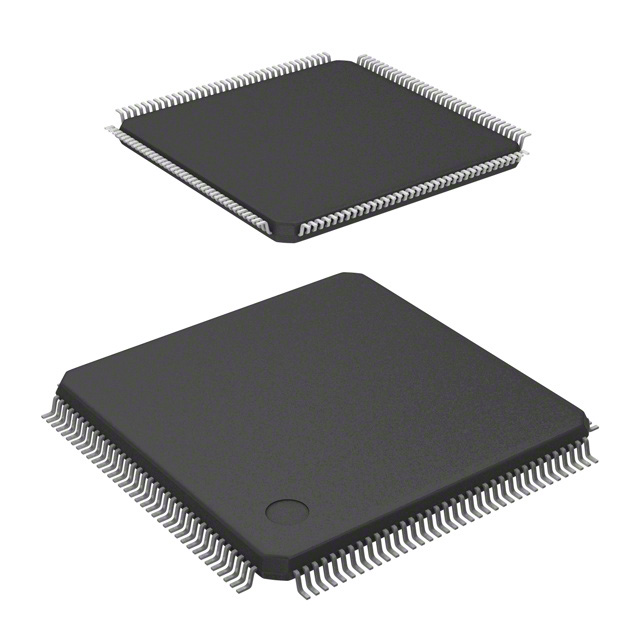

STM32F407ZGT6
Datasheet
6MB
Specifications
| Digi-Key part number | 497-11766-ND |
| Manufacturer | STMicroelectronics |
| Manufacturer Product Number | STM32F407ZGT6 |
| Description | IC MCU 32BIT 1MB FLASH 144LQFP |
| Detailed Description | ARM® Cortex®-M4 STM32F4 Microcontroller IC 32-Bit Single-Core 168MHz 1MB (1M x 8) FLASH 144-LQFP (20×20) |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | STM32F4 |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 168MHz |
| Connectivity | CANbus, DCMI, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Number of I/O | 114 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 192K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LQFP (20×20) |
| Base Product Number | STM32F407 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
