S9S12VR48AF0VLF
Datasheet
4MB
Specifications
| Digi-Key part number | 568-14934-ND |
| Manufacturer | NXP USA Inc. |
| Manufacturer Product Number | S9S12VR48AF0VLF |
| Description | IC MCU 16BIT 48KB FLASH 48LQFP |
| Detailed Description | 12V1 S12 MagniV Microcontroller IC 16-Bit 25MHz 48KB (48K x 8) FLASH 48-LQFP (7×7) |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | S12 MagniV |
| Package | Tray |
| Product Status | Active |
| Core Processor | 12V1 |
| Core Size | 16-Bit |
| Speed | 25MHz |
| Connectivity | IrDA, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 28 |
| Program Memory Size | 48KB (48K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 2K x 8 |
| Voltage – Supply (Vcc/Vdd) | 3.13V ~ 5.5V |
| Data Converters | A/D 6x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |

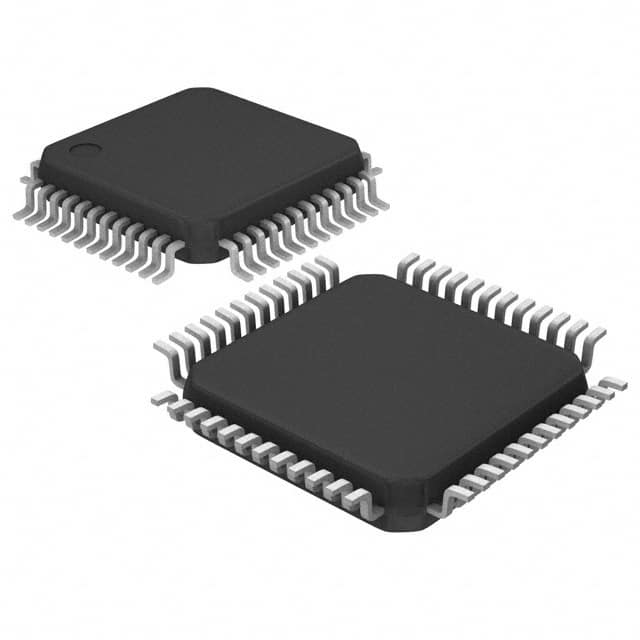

| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7×7) |
| Base Product Number | S9S12 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
| Manufacturer Standard Lead Time | 52 Weeks |
