NUP2105LT1G
Datasheet
1MB
Specifications
| Digi-Key Part Number | NUP2105LT1GOSTR-ND – Tape & Reel (TR) |
| NUP2105LT1GOSCT-ND – Cut Tape (CT) | |
| NUP2105LT1GOSDKR-ND – Digi-Reel® | |
| Manufacturer | onsemi |
| Manufacturer Product Number | NUP2105LT1G |
| Description | TVS DIODE 24VWM 44VC SOT23-3 |
| Detailed Description | 44V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236) |
| Category | Circuit Protection |
| TVS – Diodes | |
| Mfr | onsemi |
| Series | – |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Zener |
| Bidirectional Channels | 2 |
| Voltage – Reverse Standoff (Typ) | 24V (Min) |
| Voltage – Breakdown (Min) | 26.2V |
| Voltage – Clamping (Max) @ Ipp | 44V |
| Current – Peak Pulse (10/1000µs) | 8A (8/20µs) |
| Power – Peak Pulse | 350W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 30pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

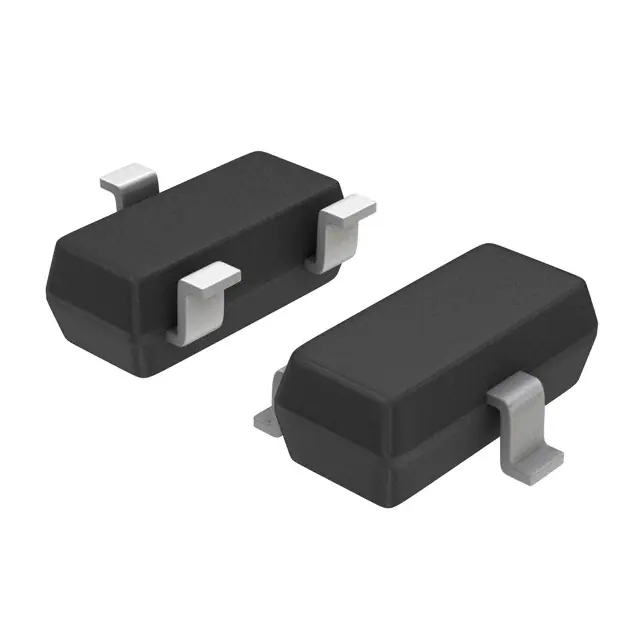

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | NUP2105 |
