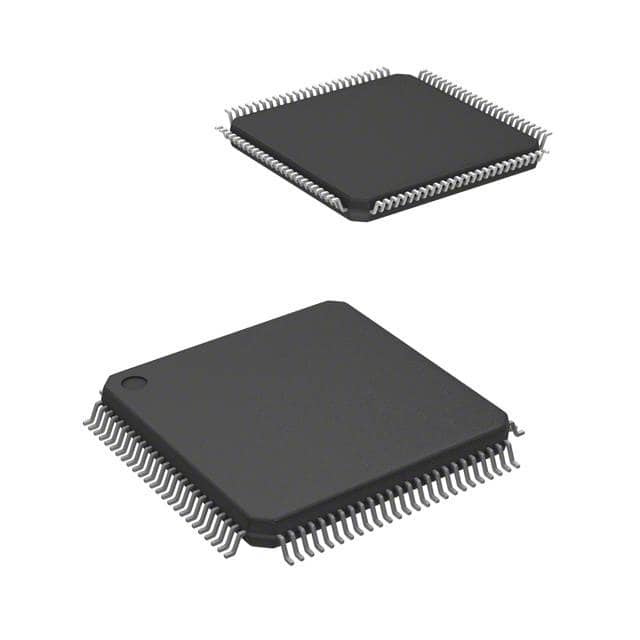

LPC2368FBD100K
Datasheet
1MB
Specifications
| Digi-Key part number | 568-LPC2368FBD100K-ND |
| Manufacturer | NXP USA Inc. |
| Manufacturer Product Number | LPC2368FBD100K |
| Description | IC MCU 16/32B 512KB FLSH 100LQFP |
| Detailed Description | ARM7® LPC2300 Microcontroller IC 16/32-Bit 72MHz 512KB (512K x 8) FLASH 100-LQFP (14×14) |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | LPC2300 |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM7® |
| Core Size | 16/32-Bit |
| Speed | 72MHz |
| Connectivity | CANbus, Ethernet, I²C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 70 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 58K x 8 |
| Voltage – Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 6x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14×14) |
| Base Product Number | LPC2368 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
| Manufacturer Standard Lead Time | 52 Weeks |
