Home / Products / Discrete Semiconductor / ES1D

Same day delivery in stock

ES1D

Datasheet

1MB

Specifications

Digi-Key part number 1655-ES1DTR-ND – Tape & Reel (TR)
1655-ES1DCT-ND – Cut Tape (CT)
1655-ES1DDKR-ND – Digi-Reel®
Manufacturer SMC Diode Solutions
Manufacturer Product Number ES1D
Description DIODE GEN PURP 200V 1A SMA
Detailed Description Diode Standard 200 V 1A Surface Mount SMA (DO-214AC)
Category Discrete Semiconductor Products
Diodes – Rectifiers – Single
Mfr SMC Diode Solutions
Series
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Speed Fast Recovery = 200mA (Io)
Mounting Type Surface Mount

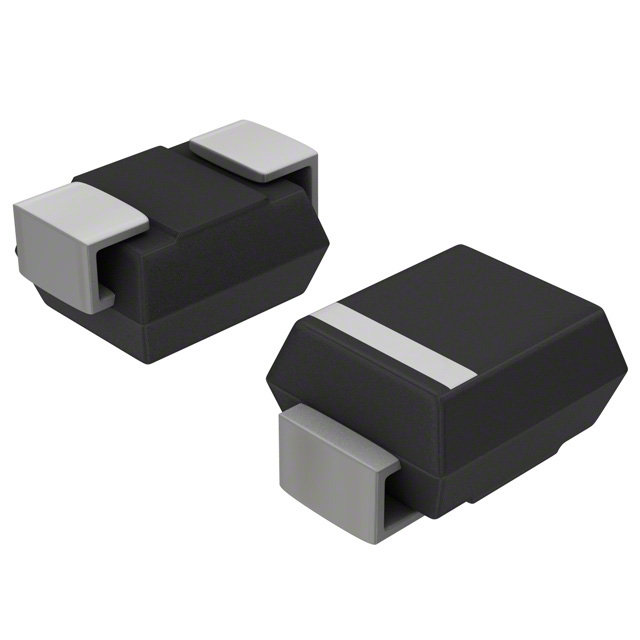

Package / Case DO-214AC, SMA
Supplier Device Package SMA (DO-214AC)
Base Product Number ES1
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Diode Type Standard
Voltage – DC Reverse (Vr) (Max) 200 V
Voltage – Forward (Vf) (Max) @ If 950 mV @ 1 A
Reverse Recovery Time (trr) 35 ns
Current – Reverse Leakage @ Vr 5 µA @ 200 V
Operating Temperature – Junction -55°C ~ 150°C
Manufacturer Standard Lead Time 16 Weeks
