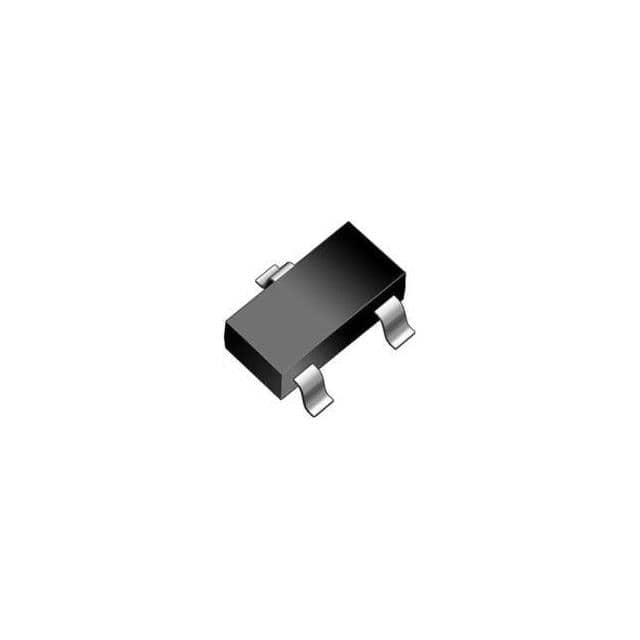

BAV70
Specifications
| Digi-Key part number | 4024-BAV70TR-ND – Tape & Reel (TR) |
| Manufacturer | HY Electronic (Cayman) Limited |
| Manufacturer Product Number | BAV70 |
| Description | SMD SWITCHING DIODE |
| Detailed Description | Diode Array 1 Pair Common Cathode Standard 70 V 200mA Surface Mount |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Arrays | |
| Mfr | HY Electronic (Cayman) Limited |
| Series | BAV70 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |
| Package / Case | – |
| Supplier Device Package | SOT-23 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | Vendor Undefined |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage – DC Reverse (Vr) (Max) | 70 V |
| Current – Average Rectified (Io) (per Diode) | 200mA |
| Voltage – Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Reverse Recovery Time (trr) | 6 ns |
| Current – Reverse Leakage @ Vr | 2.5 µA @ 100 V |
| Operating Temperature – Junction | 150°C |
