Same day delivery in stock
BAV70
Datasheet
1MB
Specifications
| Digi-Key part number | BAV70PSTR-ND – Tape & Reel (TR) |
| BAV70PSCT-ND – Cut Tape (CT) | |
| BAV70PSDKR-ND – Digi-Reel® | |
| Manufacturer | Panasonic Electronic Components |
| Manufacturer Product Number | BAV70 |
| Description | DIODE ARRAY GP 80V 200MA SOT23-3 |
| Detailed Description | Diode Array 1 Pair Common Cathode Standard 80 V 200mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Arrays | |
| Mfr | Panasonic Electronic Components |
| Series | – |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Obsolete |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |

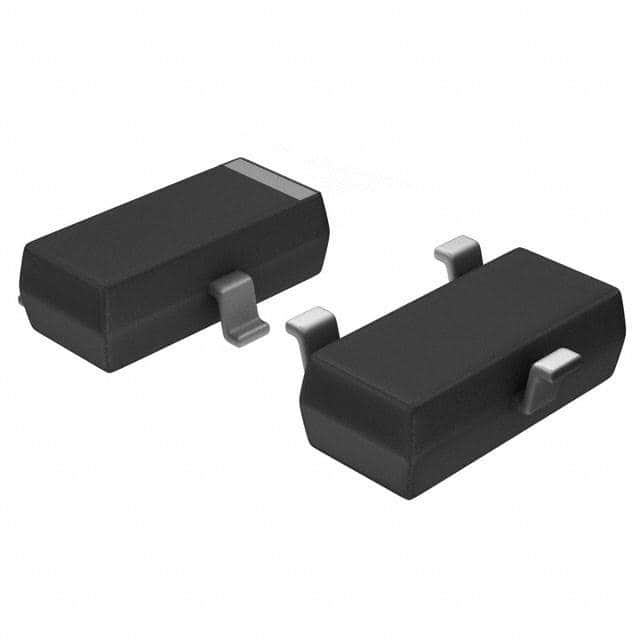

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | BAV70 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage – DC Reverse (Vr) (Max) | 80 V |
| Current – Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage – Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current – Reverse Leakage @ Vr | 100 nA @ 80 V |
| Operating Temperature – Junction | 150°C (Max) |
