BAT54C
Datasheet
1MB
Specifications
| Digi-Key part number | 1655-BAT54CTR-ND – Tape & Reel (TR) |
| 1655-BAT54CCT-ND – Cut Tape (CT) | |
| 1655-BAT54CDKR-ND – Digi-Reel® | |
| Manufacturer | SMC Diode Solutions |
| Manufacturer Product Number | BAT54C |
| Description | DIODE ARRAY SCHOTTKY 30V SOT523 |
| Detailed Description | Diode Array 1 Pair Common Cathode Schottky 30 V 100mA Surface Mount SOT-523 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Arrays | |
| Mfr | SMC Diode Solutions |
| Series | – |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Speed | Fast Recovery = 200mA (Io) |
| Mounting Type | Surface Mount |

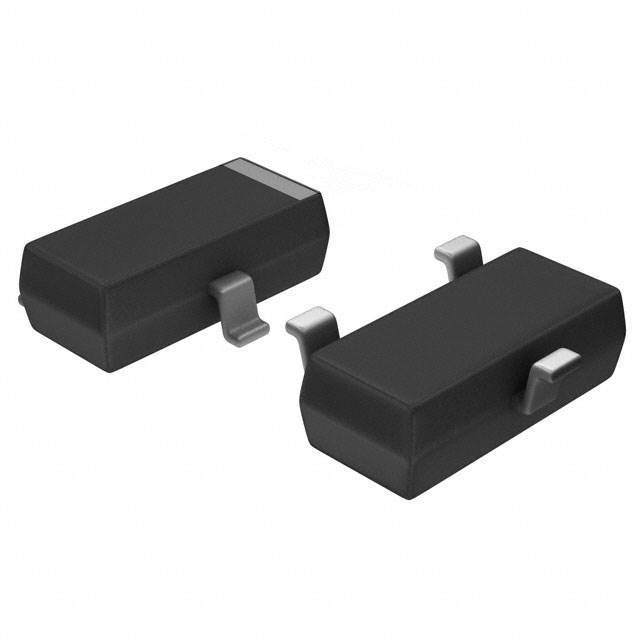

| Package / Case | SOT-523 |
| Supplier Device Package | SOT-523 |
| Base Product Number | BAT54 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Voltage – DC Reverse (Vr) (Max) | 30 V |
| Current – Average Rectified (Io) (per Diode) | 100mA |
| Voltage – Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Reverse Recovery Time (trr) | 5 ns |
| Current – Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature – Junction | 125°C (Max) |
| Manufacturer Standard Lead Time | 14 Weeks |
