Same day delivery in stock
BAT54C
Datasheet
1MB
Specifications
| Digi-Key part number | 2721-BAT54CTR-ND – Tape & Reel (TR) |
| Manufacturer | Diotec Semiconductor |
| Manufacturer Product Number | BAT54C |
| Description | SchottkyD, 30V, 0.2A |
| Detailed Description | Diode Array 1 Pair Common Cathode Schottky 30 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Arrays | |
| Mfr | Diotec Semiconductor |
| Series | – |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |

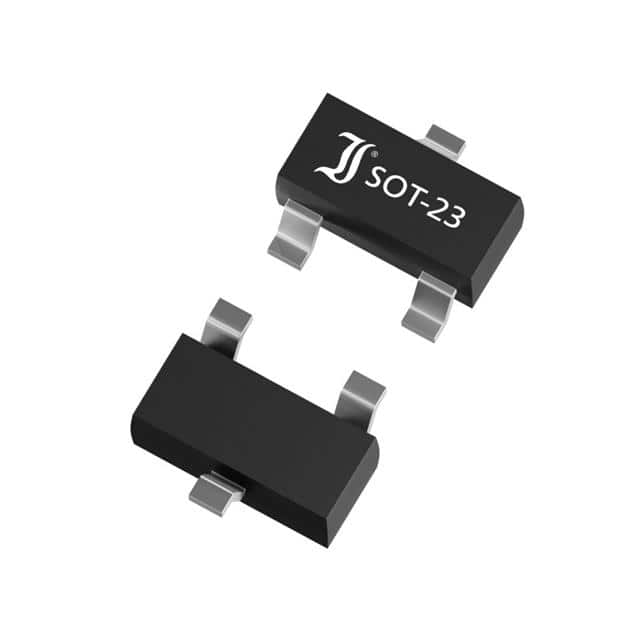

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | BAT54 |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH info available upon request |
| ECCN | EAR99 |
| HTSUS | 8541.10.0000 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Voltage – DC Reverse (Vr) (Max) | 30 V |
| Current – Average Rectified (Io) (per Diode) | 200mA |
| Voltage – Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Reverse Recovery Time (trr) | 5 ns |
| Current – Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature – Junction | -55°C ~ 150°C |
