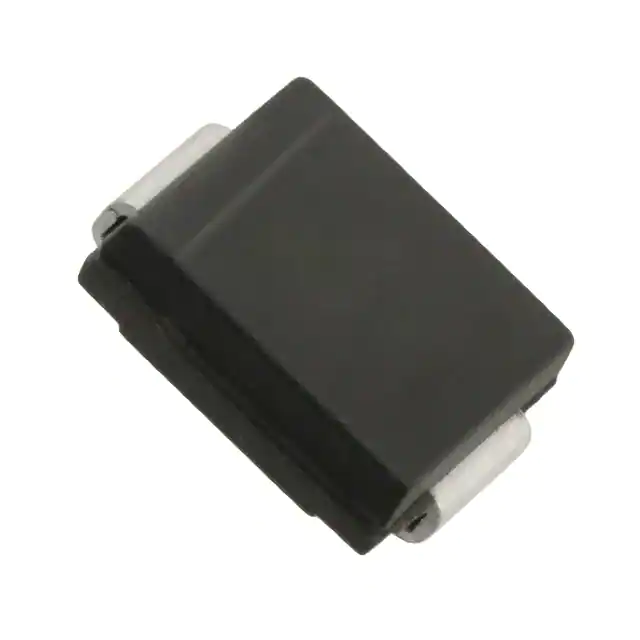

B560C-13-F
Datasheet
1MB
Specifications
| Digi-Key Part Number | B560C-FDITR-ND – Tape & Reel (TR) |
| B560C-FDICT-ND – Cut Tape (CT) | |
| B560C-FDIDKR-ND – Digi-Reel® | |
| Manufacturer | Diodes Incorporated |
| Manufacturer Product Number | B560C-13-F |
| Description | DIODE SCHOTTKY 60V 5A SMC |
| Manufacturer Standard Lead Time | 80 Weeks |
| Detailed Description | Diode Schottky 60 V 5A Surface Mount SMC |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Single | |
| Mfr | Diodes Incorporated |
| Series | – |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Diode Type | Schottky |
| Voltage – DC Reverse (Vr) (Max) | 60 V |
| Current – Average Rectified (Io) | 5A |
| Voltage – Forward (Vf) (Max) @ If | 700 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current – Reverse Leakage @ Vr | 500 µA @ 60 V |
| Capacitance @ Vr, F | 300pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |

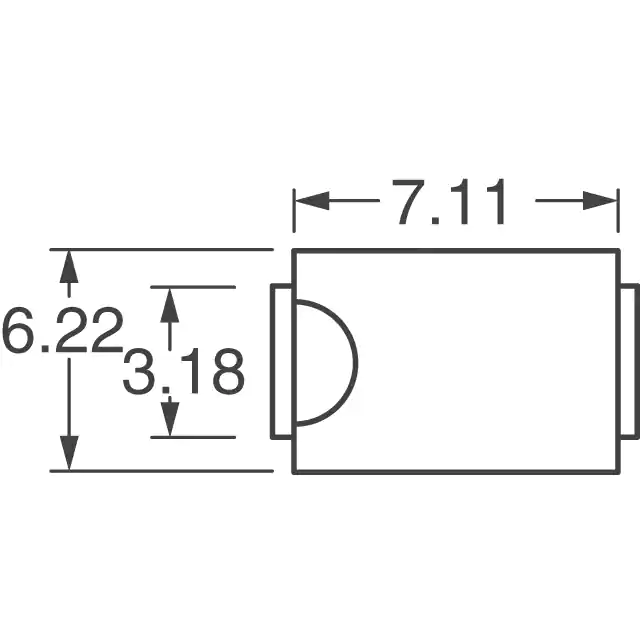

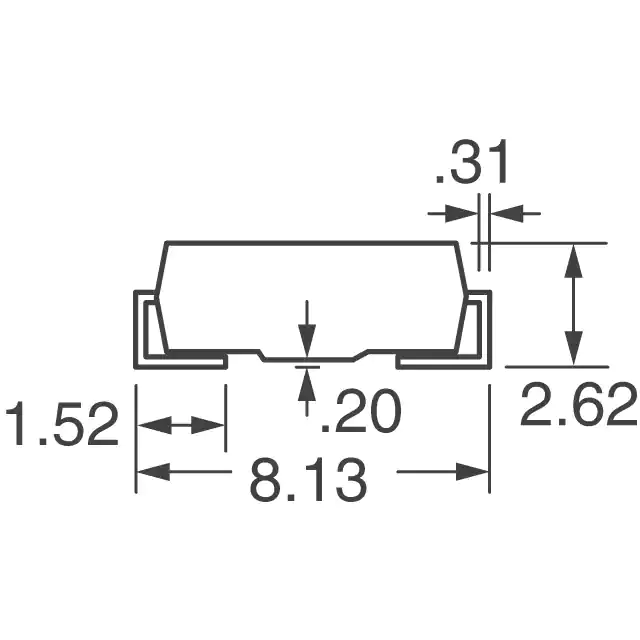

| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Operating Temperature – Junction | -55°C ~ 150°C |
| Base Product Number | B560 |
