Same day delivery in stock
742792664
Datasheet
1MB
Specifications
| Digi-Key part number | 732-1586-2-ND – Tape Reel (TR) |
| 732-1586-1-ND – Shear Tape (CT) | |
| 732-1586-6-ND – Digi-Reel® Custom Reel Tape | |
| manufacturer | Würth Electronics |
| Manufacturer product number | 742792664 |
| description | FERRITE BEAD 1 KOHM 0603 1LN |
| Original standard lead time | 29 weeks |
| Detailed description | 1 kOhms @ 100 MHz 1 signal line Ferrite beads and chip 0603 (1608 metric) 300mA 600 mΩ |
| category | filter |
| Ferrite beads and chips | |
| manufacturer | Würth Electronics |
| series | WE-CBF |
| wrap | Reel Tape (TR) |
| Cutting Tape (CT) | |
| Digi-Reel® Custom Reel | |
| Product Status | Sale |
| Filter type | Signal lines |
| The number of lines | 1 |
| Impedance at different frequencies | 1 kOhms @ 100 MHz |
| Rated current (max.) | 300mA |
| DC Resistance (DCR) (Max) | 600 mΩ |
| grade | – |
| Operating temperature | -55°C ~ 125°C |
| Encapsulation/housing | 0603 (1608 Metric) |
| The installation type | Surface mount type |

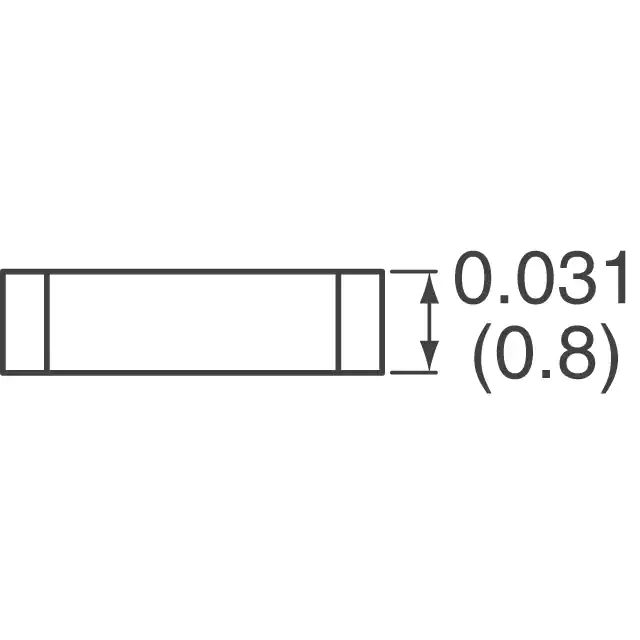

| Height (maximum) | 0.039″（1.00mm） |

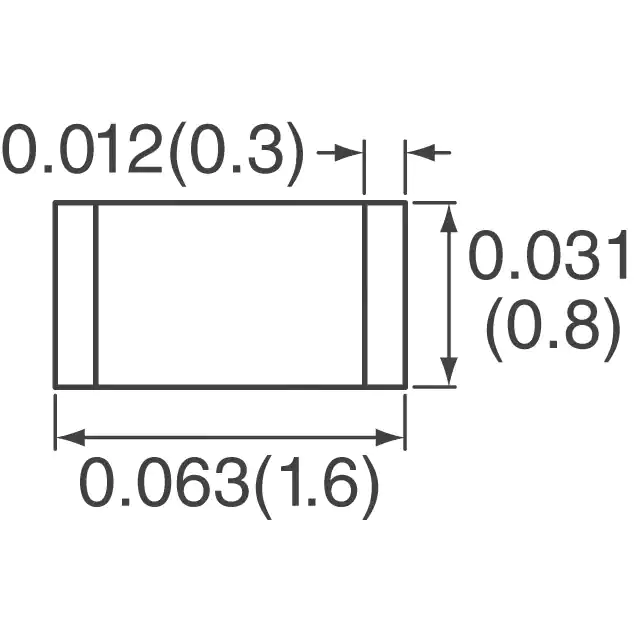

| Size / Size | 0.063″ L x 0.032″ W (1.60mm x 0.80mm) |
