20021121-00006C4LF
Datasheet
2MB
Specifications
| Digi-Key Part Number | 609-3693-2-ND – Tape & Reel (TR) |
| 609-3693-1-ND – Cut Tape (CT) | |
| 609-3693-6-ND – Digi-Reel® | |
| Manufacturer | Amphenol ICC (FCI) |
| Manufacturer Product Number | 20021121-00006C4LF |

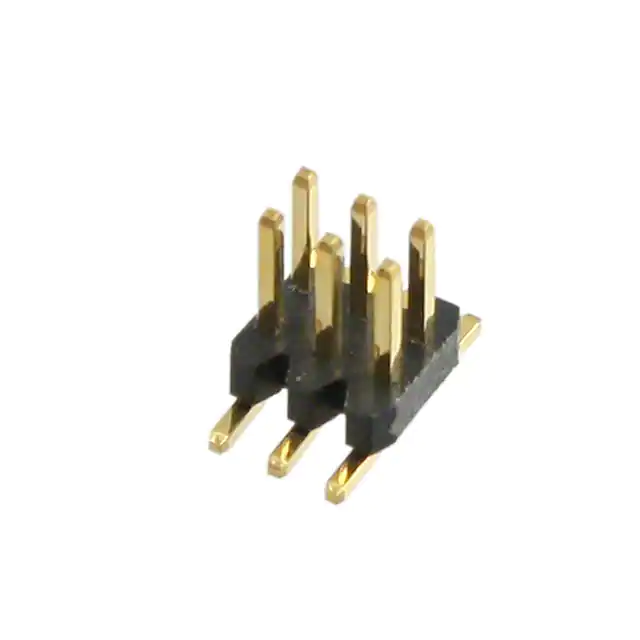

| Description | CONN HEADER SMD 6POS 1.27MM |
| Manufacturer Standard Lead Time | 7 Weeks |
| Detailed Description | Connector Header Surface Mount 6 position 0.050″ (1.27mm) |
| Category | Connectors, Interconnects |
| Rectangular Connectors – Headers, Male Pins | |
| Mfr | Amphenol ICC (FCI) |
| Series | Minitek127® 1.27mm |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch – Mating | 0.050″ (1.27mm) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing – Mating | 0.050″ (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length – Mating | 0.120″ (3.05mm) |
| Contact Length – Post | – |
| Overall Contact Length | – |
| Insulation Height | – |
| Contact Shape | Square |
| Contact Finish – Mating | Gold |
| Contact Finish Thickness – Mating | 10.0µin (0.25µm) |
| Contact Finish – Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Pick and Place |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A per Contact |
| Voltage Rating | 125VAC |
| Mated Stacking Heights | – |
| Contact Finish Thickness – Post | 50.0µin (1.27µm) |
| Applications | – |
| Base Product Number | 20021121 |
