Same day delivery in stock
1N5819
Datasheet
1MB
Specifications
| Digi-Key part number | 1N5819FSTR-ND – Tape & Reel (TR) |
| 1N5819FSCT-ND – Cut Tape (CT) | |
| Manufacturer | onsemi |
| Manufacturer Product Number | 1N5819 |
| Description | DIODE SCHOTTKY 40V 1A DO41 |
| Detailed Description | Diode Schottky 40 V 1A Through Hole DO-41 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Single | |
| Mfr | onsemi |
| Series | – |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Obsolete |
| Speed | Fast Recovery = 200mA (Io) |
| Mounting Type | Through Hole |

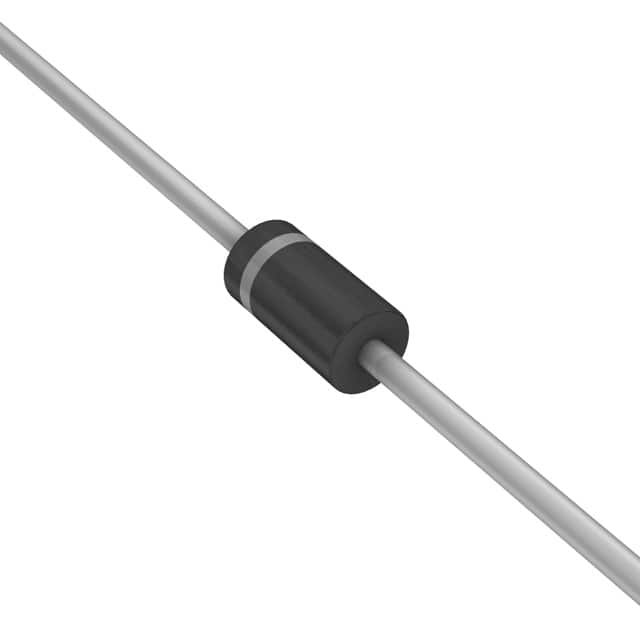

| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Base Product Number | 1N5819 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
| Diode Type | Schottky |
| Voltage – DC Reverse (Vr) (Max) | 40 V |
| Voltage – Forward (Vf) (Max) @ If | 600 mV @ 1 A |
| Current – Reverse Leakage @ Vr | 500 µA @ 40 V |
| Operating Temperature – Junction | -65°C ~ 125°C |
