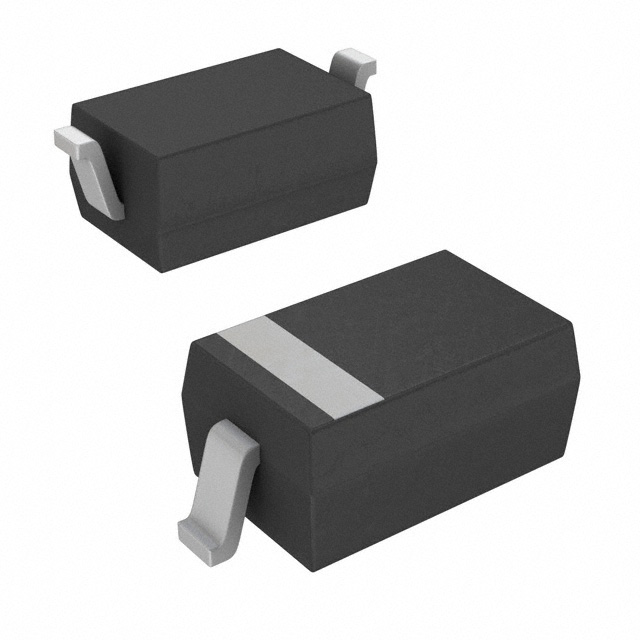

1N4148W
Datasheet
1MB
Specifications
| Digi-Key part number | 1655-1N4148WTR-ND – Tape & Reel (TR) |
| 1655-1N4148WCT-ND – Cut Tape (CT) | |
| 1655-1N4148WDKR-ND – Digi-Reel® | |
| Manufacturer | SMC Diode Solutions |
| Manufacturer Product Number | 1N4148W |
| Description | DIODE GEN PURP 75V 250MA SOD123 |
| Detailed Description | Diode Standard 75 V 250mA (DC) Surface Mount SOD-123 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Single | |
| Mfr | SMC Diode Solutions |
| Series | – |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Speed | Fast Recovery = 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Base Product Number | 1N414 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
| Diode Type | Standard |
| Voltage – DC Reverse (Vr) (Max) | 75 V |
| Voltage – Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Reverse Recovery Time (trr) | 4 ns |
| Current – Reverse Leakage @ Vr | 2.5 µA @ 75 V |
| Operating Temperature – Junction | -55°C ~ 150°C |
| Manufacturer Standard Lead Time | 14 Weeks |
